ZM-GWB1
Features:
  1. Pure aluminium base ensures optimal weight and heat dissipation.
  2. Anodized product surface prevents corrosion.
  3. Two types of water blocks provide support for virtually all types of ATI and NVIDIA VGA card. This product can be reused with upgraded video cards. (Note: This product is not compatible with VGA cards that do not have holes around the VGA chip)
  4. RAM heatsinks provide effective heat dissipation.

*This VGA water block is a component for water cooling systems for CPUs and cannot be used independently. It must be used with a water cooling system such as ZALMAN's Reserator 1 Water Cooling System.
Specifications:
        Small Type Large Type
Material Pure Aluminium (anodized)
Dimensions 35.6 (W) X 66 (L) X 27.5 (H) mm 35.6 (W) X 76 (L) X 27.5 (H) mm
Weight 60g 75g
RAM Heat Sink Aluminium (Anodized), 8pcs, 5g / pc
Tubing Silicone Tubing (12 X 8, 13 X 9 mm)

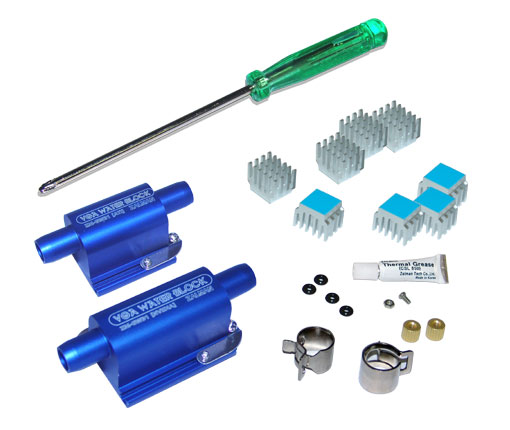

Components:

  1. Small - 1EA, Large Type - 1EA
  2. RAM Heatsink - 8EA
  3. Tube Clamp
  4. Thermal grease
  5. etc (O-ring - 4EA, Nipple - 2EA, Bolt & Nut - 1EA)
