Features
|
|
Output Power (Max.)
|
120W
|
|
Overload Protection
|
Yes
|
|
Fanless
|
No noise
|
|
Short Circuit Protection
|
Yes
|
|
Line Regulation
|
+5%
|
|
Load Regulation
|
+5%
|
|
Switching Mode
|
Universal switching-mode power adapter for notebooks and LCDs
|
|
Special Connectors
|
13 Pieces Tip Connectors
Including 3-pin connector for Dell notebook*, 4pin TOSHIBA & IBM.
|
|
Efficiency
|
> 87% (TYP)
|
|
Unit Size
|
5.25"(W) x 2.4"(D) x 1.5"(H)
|
|
Net Weight
|
1lb
|
|
Package Contents
|

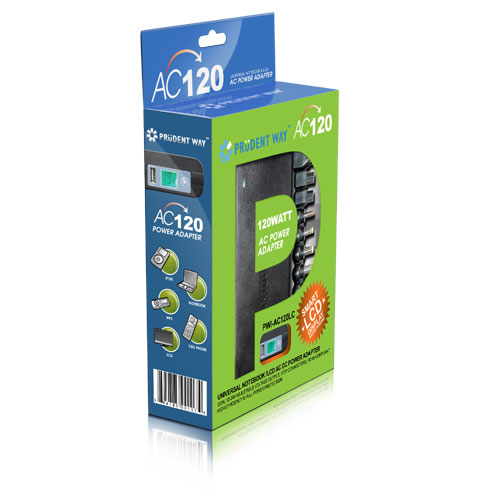

Prudent way (PWI-AC120LE) 120W AC Notebooks and LCDs Power Adapter
13 Tips Connectors
User Manuals
|
|
Limited Warranty
|
One year
|
|
|
OUTPUT
|
|
Output Voltage
|
12V
|
15V
|
16V
|
18V
|
19V
|
20V
|
24V
|
DC12V-24V
|
|
USB Port
|
5V
|
|
|
Output Current
|
12V
|
15V
|
16V
|
18V
|
19V
|
20V
|
|
@ 6Amp (max)
|
|
Output Current
|
|
|
|
|
|
|
24V
|
@ 5AMP (max)
|
|
USB Port
|
5V
|
@ 2 AMP
|
|
|
INPUT
|
|
Input Voltage
|
AC120V
|
AC230V
|
|
Vibration Input Voltage
|
AC100V-240V
|
|
Input Current
|
2.2AMP
|
|
Input Power
|
135VA
|
|
|
ENVIRONMENTAL
|
|
Operating Temp.
|
0 to 40°C
|
|
Humidity
|
20% to 80%
|
|
RoHS Compliant
|
Yes
|
|
