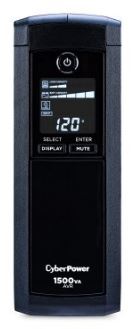

CYBERPOWER 1500VA UPS RJ11/45/SER/USB (30DAYS DOA WTY)

CYBERPOWER 1500VA UPS RJ11/45/SER/USB (30DAYS DOA WTY)

  • Item #: PP-CP-CP1500AVRLCD
  • Model #: CP1500AVRLCD

  • Capacity: 1500 VA / 900 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Runtime (half/full): 12 minutes / 3 minutes
  • Plug type & cord: NEMA 5-15P, 6ft. cord
  • Outlets: 12 (6 surge, 6 surge + battery backup)
  • Communication: USB, Serial
  • Data line protection: Telephone, Ethernet, Coaxial
  • Management software: PowerPanel® Personal
  • ENERGY STAR® qualified: Yes

Availability: In Stock
Weight 25.00 lbs
Quantity:
$265.43

Features and Specifications

General
UPS Topology Line Interactive
Energy Saving GreenPower UPS™ Bypass
Input
Voltage Nominal 120V
Input voltage range 90Vac – 142VAC
Frequency 60Hz ± 3Hz
Plug Type NEMA 5-15P
Plug Style Right Angle
Cord Length (FT) 6 ft
Output
VA 1500
Watts 900
On Battery Voltage 120 VAC ± 5%
On Battery Frequency 60 Hz ± 1%
Automatic Voltage Regulation Yes – Single Boost (10%)
On Battery Waveform Simulated Sine Wave
Outlet Type NEMA 5-15R

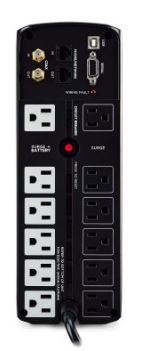

Outlets – Total 12
Outlets – Battery & Surge Protected 6
Overload Protection Internal circuitry limiting / breaker
Transfer Time 4 ms
Battery
Runtime at Half Load (min) 12 minutes
Runtime at Full Load (min) 3 minutes
Battery Voltage(V) 12V
Battery Capacity 9Ah
User Replaceable Yes
Hot Swappable Yes
Typical Recharge Time 8 hours
Replacement Battery RB1290X2 (units with ‘CTH’ serial code)
RB1280X2A (units with ‘CPT or CPA’ serial code)
Battery Quantity 2
Protection
Surge Suppression 1,500 J
EMI/RFI Filtering Yes
RJ11/RJ45 1-In, 1-Out (Combo)
Coax Protection 1-In, 1-Out
Management & Communications
LCD Backlight Black
Intelligent Multifunction LCD Interface Yes



Load Capacity %

Load Capacity Absolute

Battery Charge %

Input/Output Voltage

Input/Output Frequency

Estimated Runtime

AVR

On Batt

Overload

Schedule

Silence

Fault
HID Compliant USB Port Yes
Serial Port Yes (Dry Contact)
Management Cable USB Cable
LED Indicators Power



Wiring Fault
Audible Alarms On Battery



Low Battery

Overload

Fault
Software (Free Download) PowerPanel® Personal
SNMP / HTTP Remote Monitoring No
Physical
Dimensions (WxHxD) (inch) 3.9 x 11 x 14
Weight (lb) 25
Form Factor Mini-Tower
Environmental
Operating Temperature 32°F to 104°F / 0°C to 40°C
Operating Relative Humidity 0% – 90% (non-condensing)
Operating Elevation 10,000 ft / 3,000 m
Storage Temperature 5°F to 113°F / -15°C to 45°C
Storage Relative Humidity 0% – 95% non condensing
Storage Elevation 50,000 ft / 15,000 m
Certifications
Safety UL1778



cUL 107 5th

FCC Class B
Warranty
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
CEG Amount $500,000
