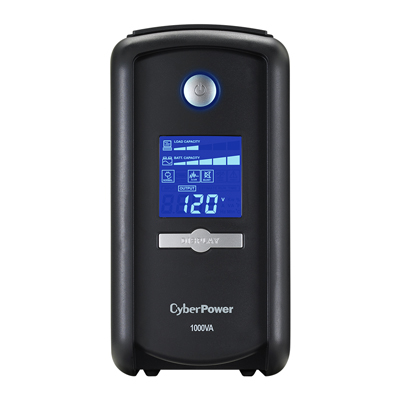

CYBERPOWER 1000VA UPS RJ11/45/SER/USB (30 DAYS DOA WTY)

CYBERPOWER 1000VA UPS RJ11/45/SER/USB (30 DAYS DOA WTY)

  • Item #: PP-CP-CP1000AVRLCD
  • Model #: CP1000AVRLCD

CP1000AVRLCD

Intelligent LCD UPS Series

  • Capacity: 1000 VA / 600 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlet types: 9 × NEMA 5-15R
  • Communication: USB, Serial
  • Data line protection: Telephone, Ethernet, Coaxial
  • Management software: PowerPanel® Personal Edition
  • ENERGY STAR® qualified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $350,000

Availability: In Stock
Weight 18.00 lbs
Quantity:
$202.71

Features and Specifications

General
UPS Topology Line Interactive
ENERGY STAR® Qualified Yes
Energy Saving GreenPower UPS™ Bypass Technology
Input
Voltage 120 VAC
Frequency Range 57 – 63 Hz
Plug Type NEMA 5-15P
Plug Style Right Angle
Cord Length 6 ft
Output
VA 1,000 VA
Watts 600 W
Automatic Voltage Regulation Yes
On Battery Voltage 120 VAC ± 5%
On Battery Frequency 60 Hz ± 1%
On Battery Waveform Simulated Sine Wave
Outlet Type NEMA 5-15R
Outlets - Total 9
Outlets - Battery & Surge Protected 5
Outlets - Surge-Only Protected 4
Overload Protection Internal Circuitry Limiting
Circuit Breaker
Transfer Time 4 ms
Battery
Runtime at Half Load 6 minutes
Runtime at Full Load 1 minute
Battery Type Sealed Lead-Acid
Battery Size 12V/9Ah
Replacement Battery RB1290
Battery Quantity 1
User Replaceable Yes
Typical Recharge Time 8 hours
Surge Protection & Filtering
Surge Suppression 1,080 J
Phone RJ11 / Ethernet RJ45 1-In, 1-Out (Combo)
Coaxial Protection RG6 1-In, 1-Out
Management & Communications
Multifunction LCD Panel Displays:
Current/Load Level
Runtime
Battery Level
AVR In Use
Battery In Use
Input Voltage
Output Voltage
Output Frequency
Overload
Wiring Fault
Silent Mode
HID Compliant USB Port Yes
LED Indicators Power On
Wiring Fault
Audible Alarms On Battery
Low Battery
Overload
Software PowerPanel® Personal Edition
Serial Port Yes
Physical
Form Factor Mini-Tower
Dimensions - W×H×D (in) 4.25 × 8.75 × 10.5 inches
Weight (lbs) 15.9 lbs
Environmental
Operating Temperature 32 – 95 °F (0 – 35 °C)
Operating Humidity 0 – 95% (non-condensing)
Certifications
Safety UL1778
cUL 107.1
FCC DOC Class B
Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited
