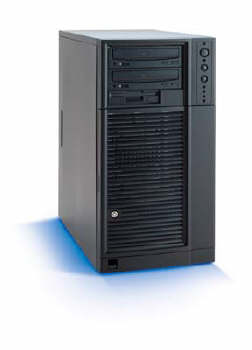

Entry Level (SC5250-E) Server Case


The Intel® Entry Server Chassis SC5250-E lets you meet many customer needs ranging from file and print for SMB to work station requirements with one chassis. The Server Chassis SC5250-E supports Intel Server Boards SE7505VB2, SE7501BR2, S845WD1-E, and SE7500CW2 with dual Intel® Xeon (tm) processors, pedestal configuration, single 450W power supply, and different drive configurations
Features:
  • Designed for and validated with Intel® Server Boards SE7505VB2, SE7501BR2, S845WD1, SE7500CW2
  • 17.75 " height (w/ feet), 9.3" wide, and 19.1" deep
  • Available in Black and Beige colors
  • Pedestal Configuration, and is Shelf-able
  • Up to 6 standard drive bays, 450W power-supply
  • Upgrade up to 5 one-inch Ultra320 SCSI hot-swap drives
  • Upgrade up to 4 hot swap SATA (early Q2)
  • Support for Intel® Server Management
  • Extensive international safety and EMC regulatory approvals
Form Factor
Pedestal Server Standards Infrastructure (SSI) Entry E-Bay 3.0-compatible
Dimensions & Color
Pedestal 17.75" (height with feet) x 9.28" (width) x 19.1" (depth) Black or Dusty Beige
Hard-Drive-Bay Support
Standard Configuration Up to six fixed Ultra320 SCSI or IDE drives (one-inch height) or SATA drives
SCSI Backplane (optional) LVD with SAF-TE, U320
External Peripheral Bays Two 5.25" (1.75" height) and one at 3.5" (floppy)
System Cooling
Two fans positioned for main chassis and power-supply cooling and monitored by Intel® Server Management for temperature and speed when this software is installed.
Front Panel
Buttons & Switches Power on/off (momentary) button, system reset button, ACPI sleep switch
LEDs Power, NIC1, NIC2, Drive, Status
Intel® Server Management Solution
The software and remote management capabilities are board-dependent.
Security
A mechanical lock on the front bezel, pad lock loop, and one intrusion switch that can be monitored by Intel® Server Management.
Power Supply
DC Power Supply 450W PFC
AC Voltage 100-127 / 200-240 V~; 5.0 / 2.5A
+5V 20A max
+5 Standby 2A max
+12V 30A sustained
+3.3V 24A max
-12V 0.5A max
