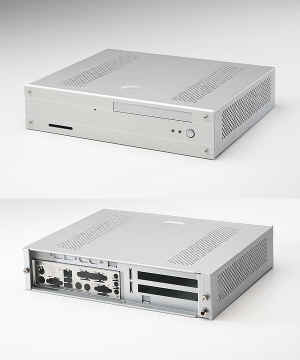

Mini-ITX (C137) Aluminum Case with 2 Expansion Slots
Features:
  • mini-ITX form factor.
  • 1 slim media drive and 1 slim type 2.5" HDD drive bay or 3.5" HDD drive bay.
  • Front access compact flash space. (compact flash reader not included)
  • 32 bit riser and extension riser card included.
  • Dual PCI riser card. (Optional)
  • Designed for excellent heat dissipation through extensive sets of vents.
Specifications:
Material: Front panel is made of extruded aluminum alloy.
Enclosure is made of all metal components.
Finishing: Front panel with clear annodized finish.

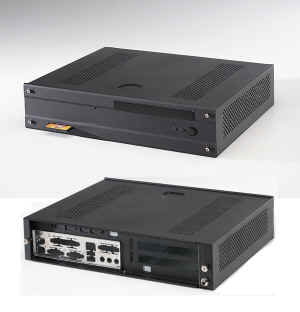

Enclosure is painted silver or black.
Front Access: Compact flash space
Dimension (WxHxD): 12.7"(322.58mm) x 2.7"(68.58mm) x 10"(254mm)
Main Board: mini-ITX or Flex ATX form factor
Drive Bays: 1 slim media drive and 1slim type 2.5" HDD drive bay or 3.5" HDD drive bay and 1 compact flash space
Internal Power Supply: Built-in 90W DC power board
External AC Adapter: -- Input (AC 100~240 V)
-- Output (DC 19V, 4.73A) 90W
