HX45 Mid-Tower

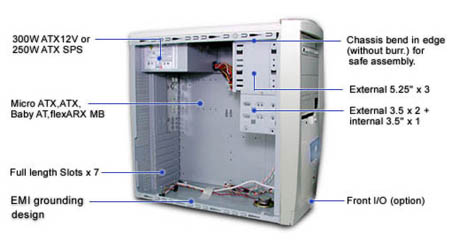

 Key Features:
  • MicroATX/ATX mid-tower
  • Good expansion capability-7 slots and 6 drive bays
  • Bent-in edges ensure safe assembly
  • Complies with FCC Class B, DoC, and CE
  • Side open for easy access
  • Smart slide-in back bracket
  • Support 300W (ATX 12V) all safety power supply
Housing Material Metal: SECC
Main Board Size Micro ATX/ATX
Disk Drive Bays 3.5" *2/1(external/internal)
5.25" *3/0(external/internal)
Power Supply 300W ATX, UL/CSA/CE/VDE/S/D/N/ FI/FCC /DoC certified
Dimensions Width  7.87"(200mm)
Height 16.30"(414mm)
Depth 16.54"(420mm)
Ventilation Air Vents with Optional 2nd DC fan
FCC,CE Ready
Net Weight 16.5 lbs. / 7.5 kg
Gross Weight 17.2 lbs. / 7.8 kg
Volume 2.16 Cu. ft.
