Reserator 1 is designed with an optimal heat dissipation area based on ZalmanTech's HCET (High Capacity Extrusion Technique) and high efficiency coolingtechnology. As a result, this product achieves excellent cooling performance even with natural convection, making it the world's first fanless, noiseless water-cooling system. The reservoir, radiator, and the water pump are conveniently integrated into one assembly, and the heatsink is anodized to prevent corrosion and rust. In addition, the kit includes the high-performance ZM-WB2 Gold waterblock which is not susceptible to galvanic corrosion.


The system includes Zalman's new CPU cooling component, ZM-WB2 Gold, which performs superbly and installs easily.

Compatible CPUs

- Intel Pentium 4 (Socket 478),
- AMD Athlon/Duron/Athlon XP (Socket 462),
- AMD AMD64 (Athlon 64/Athlon 64 FX/Opteron)
(Socket 754/939/940)

* This CPU water block can be compatible with socket 462 motherboards that have cooler mounting holes around the CPU socket.



Reserator (Reservoir+Radiator+Water Pump)
Reserator is a compound word derived from 'Reservoir' and 'Radiator' - it acts as a reservoir while radiating heat. This productworks well with natural convection and integrates a water pumpinside for convenience.

- Radiation Area : 1.274 m2
- Weight : 6.5 kg
- Dimensions : 150 (L) x 150 (W) x 592 (H) mm
- Material : Pure Aluminum, Anodized
- Coolant Capacity : Max. 2.5L
- Maximum Integrated Water Pump : 5 W, Qmax 300L/h
- Maximum Lift : 0.5 m


Flow Indicator

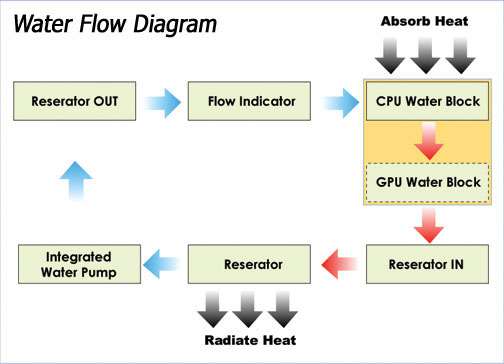

This component is connected in-line with the circulation tube to check the circulation of the coolant. When the coolant is actively circulating, the cap inside the flow indicator shakes rapidly, providing easy indication of the circulation status.


VGA Water Block ZM-GWB1 (Option)
Water block for cooling the GPU on a graphics card.
This product is sold separately and is available in two versions for compatibility with ATI Radeon and NVIDIA GeForce GPUs.

1. Pure aluminum base ensures optimal weight and heat dissipation
2. Anodized product surface prevents corrosion.
3. Two types of water block provide support for virtually all types of ATI
    and NVIDIA VGA card.
    This product can be reused with upgraded video cards.
4. RAM heatsinks provide effective heat dissipation.

1. Use only distilled water or an anticorrosive coolant that is specially designed for CPU cooling
    (Regular tap water may cause corrosion inside the product).

2. The specifications of any product may change without prior notice to improve the performance
