Thermaltake Xaser
Silent PurePower (480W)

Silver Housing Xaser Edition
Features:
  • Designed for AMD K7 and Intel ATX +12V 1.1 and ATX 2.03 version (Fully Support Pentium 4)
  • Serial ATA (Advanced Technology Attachment)
  • Peak Output: 550W
  • 2 adjustable manual fan speed control in the front and rear side of the case. (from 1300 rpm at 25°C~ 4800 rpm at 90°C).
    1. Control in Front: 5.25’’ drive bay.
    2. Control in Rear: PCI card slot
  • Temperature Automatic Fan Speed Control
  • Noise: 17 dBA at 1300 rpm, 45 dB at 4800 rpm
  • Dual fans power supply
  • Xaser badge on side panel
  • Black color printing

SPECIFICATIONS:
P/N W0013
Maximum Power 480 Watts
Switches ATX Logic on-off additional power rocker switch
Color Black Color Painted
Fan Dual Fan:
80x25mm, Two Ball Bearing,
Temp. Auto Control
1300 rpm at 25°C ~
2400 rpm at 90°C
80x15mm, Ball Bearing, 2400rpm
P. G. Signal 100-500ms
Over Voltage Protection recycle AC to reset +5V trip point < +6.8V
+3.3V trip point < +4.5V
+12V trip point <+15.6V

DIMENSIONS:
Unit Size 15cm(L)x14cm(W)x8.6cm(H)
Net Weight 2.5kg

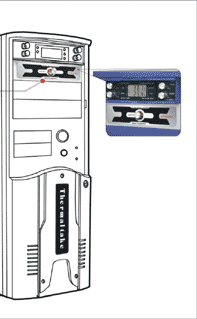

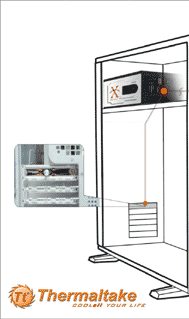

There are two ways to control the fan speed of power supply
(in Front and Rear)

Additional inside cooling fan to ensure the highest performance

OUTPUT

INPUT



+5V

-5V

+12V

-12V

+3.3V

+5VSB

Input Voltage Range

100 – 240 Vrms

Max. Load

40A

0.3A

18A

0.8A

30A

2A

Input Frequency Range

47 - 63 Hz

Min. Load

1.5A

0A

0.2A

0A

0.3A

0A

Input Current

8.0A

Load Reg.

+5% ~
-5%

+10% ~
-10%

+5% ~
-5%

+10% ~
-10%

+5% ~
-5%

+5% ~
-5%

Hold-up Time

> 16ms at Full Load

Ripple
V(p-p)

50mV

100mV

120mV

120mV

50mV

50mV

Efficiency

> 65%
