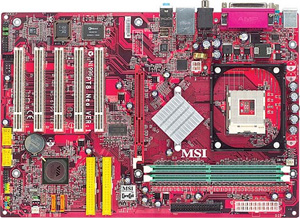

MS-6799-LSR
(VIA PT800 PT8 Neo-LSR)
Special Features:
  • Intel Hyper-Threading Technology
  • Single -Channel DDR400/333/266 Memory Bus
  • 800/533 /400 MHz FSB
  • 8X AGP, USB 2.0
  • VIA8237 integrated MAC + Realtek 8201BL PHY 10/100 Ethernet
  • Serial ATA RAID 0, 1 (VIA VT8237)
  • MSI CoreCell chip, Live Update, Fuzzy Logic4, PC Alert, i-Speeder
CPU
  • Supports Socket 478 for Intel® Pentium 4 (Northwood) processor
  • Supports up to 3.2GHz/FSB 800
  • Supports FSB  400/ 533/800MHz
Chipset
  • VIA PT800 Chipset
    - Supports FSB  400/ 533/800 MHz
    - Support Single channel DDR 400*/333/266 memory up to  2 GB
    - Support AGP 8x or 4x at 0.8V (AGP 3.0) or 4x at 1.5V (not support 3.3V)
  • VIA ®  VT8237 Chipset
    -  High Bandwidth V-Link Client controller
    -  Integrated Faster Ethernet LPC
    -  Integrated Hardware Sound AC'97 audio
    -  Ultra DMA 66/100/133 master mode PCI EIDE controller
    -  ACPI
    -  Supports Serial ATA RAID 0, RAID 1
    -  Supports USB 2.0
Main Memory
  • Supports  4 memory banks by using two 184-pin DDR DIMMs
  • Support memory size up to 2GB
  • Support Single Channel DDR 400/333/266 MHz
Slots
  • One AGP slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3v is not supported)
  • Five PCI 2.2 32-bit Master PCI Bus slots. (support 3.3v / 5v PCI bus interface)
On-Board IDE
  • An IDE controller on the VIA VT8237 chipset provides IDE HDD/ CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66 operation modes.
    - Can connect up to 4 Ultra ATA drives
  • Serial ATA/ 150 controller integrated in  VT8237
    - Up to 150MB/s transfer speed - Support RAID 0, RAID 1
    - Can connect up to 2 Serial ATA drives
LAN
  • VIA 8237 integrated MAC + Realtek 8201BL PHY
    - Supports 10Mbps and 100Mbps auto-negotiation operation.
    - Supports ACPI Power Management.
Audio
  • 6 Channel software audio codec Realtek ALC655
    - Compliance with AC97 v2.2 Spec
    - Meet PC2001 audio performance requirement
    - Can support SPDIF-out via rear RCA SPDIF Out connector
On-Board Peripherals
  • 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
  • 1 serial port (COM A)
  • 1 parallel port supports SPP/EPP/ECP mode
  • 8 USB 2.0 ports (Rear x  4 / **Front x  4 ) (**Front USB ports are supported by pin-out)
  • 1 Line-In/Line-Out/Mic-In port
  • 2 PS/2 connectors
  • 1 LAN RJ45 connector
BIOS
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
  • 30.5 cm(L) x  21 cm(W) ATX Form Factor
Mounting
  • 9 mounting holes
