Dual NET Combo PCI Card
Combo Desktop PCI Card: Wireless-G + Bluetooth
MSI DUAL NET CARD is a perfect combination of TWO popular wireless technologies: WLAN 802.11b/g and Bluetooth v1.2. When enjoying the Wireless LAN at the data transfer rate of 54Mbps, your desktop PC can also connect to any compatible Bluetooth device, like cell phone, PDA, printer, headset and so on. All these benefits are on your finger tips when choosing MSI DUAL NET CARD. In terms of the privacy protection, this card is compliant with 64/128-bit WEP, WPA and TKIP data encryption standards to prevent hacking attacks. Furthermore, this combo PCI card can be used as a fully functional Access Point for FREE by enabling its bundled software.
Features & Benefits:
  • IEEE 802.11b/g Compliant
  • Data Transfer Rate up to 54Mbps in Wireless LAN Mode. Ideal for transferring MP3, movie and large files
  • Maximum data security with 64/128bit WEP,TKIP,and WPA encryption technology
  • Bluetooth Class 2 V1.2 technology offers anti-noise function to safeguard your Bluetooth communication and let you connect up to 7 Bluetooth devices

Application Diagram:

Hardware Details:
Wireless Data Rates IEEE 802.11g (auto-fallback):
• OFDM: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
IEEE 802.11b (auto-fallback):
• CCK:11,5.5Mbps
• DQPSK:2 Mbps
• DBPSK:1 Mbps
Compliant IEEE 802.11b/g
Dimension 119.9mm x 83.15 mm
Temperature Storage Temperature : -20°C ~ 100°C
Operating Temperature : 0°C ~ 60°C
Power Consumption • Initialization Current <= 130mA
• Receive Mode <=240mA
• Transmit Mode <= 440mA
Auto-Gain Control Yes
Channel Frequency 2.4 GHz ~ 2.4835 GHz
14 Channels
Channel Power • EIRP <=20 dBm
• Output Power (Before Antenna) = 14 ± 1 dBm (IEEE 802.11g)
• Output Power (Before Antenna) = 17 ± 1 dBm (IEEE 802.11b)
Wireless Transmission Power 64/128-bit
H/W interface** 1. Wireless LAN – PCI;
2. Bluetooth – USB
Bluetooth Spec Compliance USB 1.1
Throughput Around 723 Kbps (data channels)
Operating Volt. 5V from PCI interface
Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)
Output Power Class Bluetooth Power Class 2
Output Power 4 dBm (Max)
Operating System Windows XP, Windows 2000,Windows ME, Windows 98SE
Certification Information FCC, CE, Wi-Fi + WPA, WHQL
** Hardware Interfaces:

1. H/W Interface of WLAN 11b/g: PCI Connector

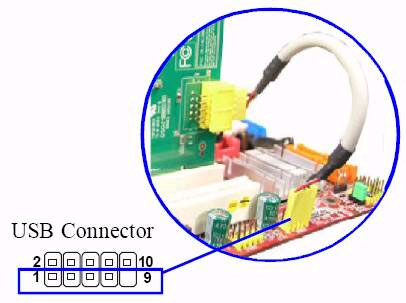

2. H/W Interface of Bluetooth v1.2: USB Connector

Accessories:

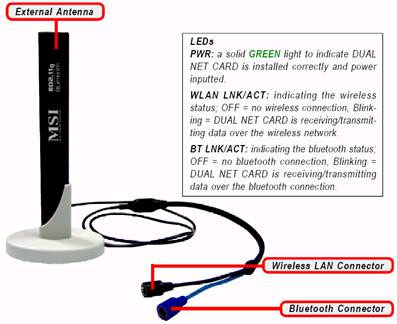

WLAN and Bluetooth Antenna    Bluetooth USB              Cable Driver CD
