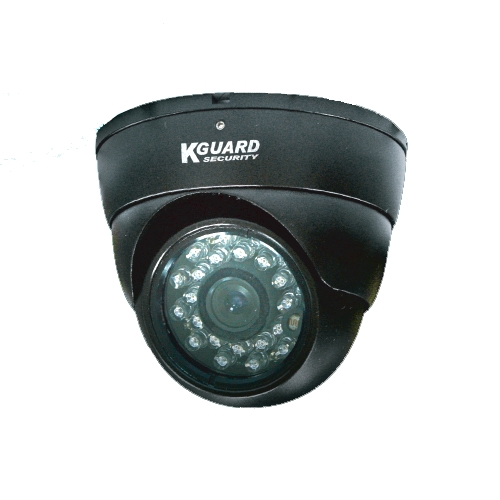

Night Vision Dome
Color Camera
CSN-3522-3 |
 |
The camera offers a convenient, compact and
cost-efficient solution with highly intelligent functions. It can see in
the dark with the IR video security camera and built in high intensity
infrared LED array. The lens provides great image performance in the
worst lighting conditions.
Specifications:
|
MODEL |
CSN-3522-3 |
|
Sensor Chip Brand |
1/3” Sony CCD |
|
Pixels |
NTSC: 512(H)x492(V) |
|
PAL: 512(H)x582(V) |
|
Horizontal Resolution |
420 TV lines |
|
IR LED |
23 |
|
S/N Ratio |
more than 48 dB |
|
Gain Control |
Auto |
|
White Balance Mode |
Auto |
|
Lens Type |
3.6mm |
|
Backlight Compensation |
Auto |
|
Exposure Mode |
EE |
|
Electronic Shutter |
1/50(1/60) – 1/100000 sec |
|
Gamma Correction |
0.45 |
|
Sync. System |
Internal Synchronization |
|
Min. illumination |
0 lux (IR ON) |
|
IR View Distance |
20M |
|
Analogue Video Output |
BNC X 1 |
|
Power Requirement |
DC 12V |
|
Operation Temperature |
-10。C ~ +45。C |
|
Dimension |
52(Ø)x94(W) x66(H)mm |
|
Weight |
220g |
