The VIA EPIA Mini-ITX mainboard brings the industry's smallest, most highly integrated, and most flexible x86 platform to OEMs and System Integrators looking for solutions that offer the maximum of features without sacrificing design flexibility. Offering the choice of a VIA Eden?#132;? ESP processor core for fanless systems with power sensitive requirements, or a VIA C3?#132;? E-Series processor for more multimedia rich applications, the EPIA Mini-ITX mainboard also features embedded onboard graphics, audio and TV-Out support. The VIA EPIA Mini-ITX mainboard is the ideal platform for an almost unlimited variety of Extreme Value PC, Information Appliance, Set Top Box, Personal Video Recorder, and Industrial PC designs.

Measuring just 170mm x 170mm, the VIA EPIA Mini-ITX mainboard is 30% smaller than the smallest Flex-ATX platforms, while maintaining Micro ATX chassis compliancy. It also provides the smallest and coolest processing environment available, including an optional fanless configuration. The VIA Apollo PLE133 North Bridge features integrated graphics with 2D/3D acceleration and DVD Motion Compensation, accompanied by onboard SoundBlaster?#132;? and SoundBlaster?#132;? Pro compatible audio, delivering key multimedia capabilities. Onboard 10/100 LAN, TV-Out, an additional PCI slot, and a full set of I/O features provide ample connectivity and expansion options.

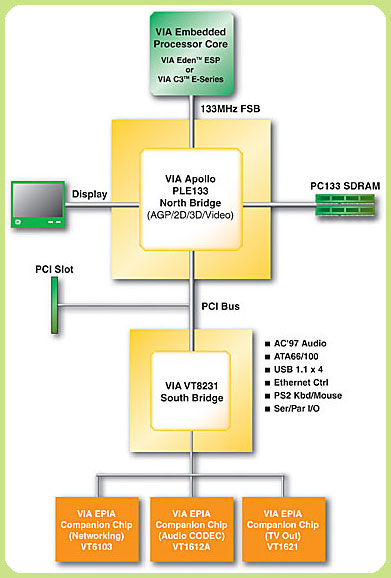

VIA EPIA Mini-ITX Mainboard Architecture
