| Type of Camera |
| Type of Camera |

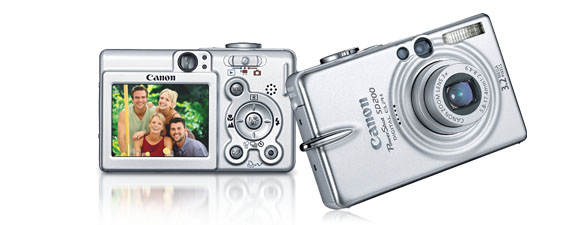

Compact digital still camera with built-in flash, 3x optical zoom/ 3.2x
digital zoom/ 10x combined zoom. |
| Image Capture Device |
| Type |
1/2.5 inch Charge-Coupled Device (CCD) |
| Total Pixels |
Approx. 3.3 Million |
| Effective Pixels |
Approx. 3.2 Million |
| Lens |
| Focal Length |
5.8(W)-17.4(T)mm, f/2.8-4.9 (35mm film equivalent: 35-105mm) |
| Digital Zoom |
3.0x |
| Focusing Range |
Normal: 1.0 ft./30cm to Infinity, Macro: 1.2 in.-16 ft./3-50cm(W), 1.0-16
ft./30-50cm(T), Digital Macro: 1.2-3.9 in./3-10cm |
| Autofocus System |
9-point AiAF/1-point AF (Fixed to center) Intelligent Orientation Sensor,
AF Lock, AF-assist Beam On/Off |
| Viewfinders |
| Optical Viewfinder |
Real-image optical zoom viewfinder |
| LCD Monitor |
2.0 inch low temperature polycrystalline silicon TFT color LCD |
| LCD Pixels |
Approx. 118,000 pixels |
| LCD Coverage |
100% |
| Aperture and Shutter |
| Maximum Aperture |
f/2.8/5.6 (W), f/4.9/10.0 (T) |
| Shutter Speed |
15-1/1500 sec.* * Manual setting is available from 15 to 1 sec. when in
Long Shutter mode. |
| Exposure Control |
| Sensitivity |
Auto*; ISO 50/100/200/400 equivalent *Camera automatically sets optimum
speeds. |
| Light Metering Method |
Evaluative, Center-weighted average or Spot* *Metering frame when spot is
center fixed. |
| Exposure Control Method |
Program AE |
| Exposure Compensation |
+/-2.0 stops in 1/3-stop |
| AE Lock |
Available |
| White Balance |
| White Balance Control |
Auto, Pre-set (Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H),
or Custom |
| Flash |
| Built-in Flash |
Auto, Auto with Red-Eye Reduction, Flash on with Red-Eye Reduction, Flash
On/Off, Slow-sync |
| Flash Range |
Normal: 1.6-11.5 ft./50cm-3.5m(W); 1.6-6.6 ft./50cm-2.0m(T) Macro:
1.0-1.6 ft./30-50cm(W/T) (When ISO is set to AUTO) |
| Recycling Time |
Approx. 10 sec. or less |
| Shooting Specifications |
| Shooting Modes |
Auto, Manual, Scene Modes (Digital Macro, Portrait, Night Snapshot, Kids
& Pets, Indoor, Underwater), Stitch Assist, Movies |
| Photo Effects |
Off, Vivid, Neutral, Low Sharpening, Sepia, Black & White |
| Self-Timer |
Operates with approx. 2 sec. or 10 sec. count-down |
| Wireless Control |
Not Available |
| Continuous Shooting |
Approx. 2.4 shots/sec. (Large/Fine Mode and LCD screen is Off) |
| Image Storage |
| Storage Media |
SD Memory Card |
| File Format |
Design Rule for Camera File System Exif 2.2 (JPEG) |
| Print Order Format |
Digital Print Order Format (DPOF) Version 1.1 |
| Image Recording Format |
Still Image: JPEG (Exif 2.2 compliant) |
| JPEG Compression Mode |
SuperFine, Fine or Normal |
| Number of Recording Pixels |
Large: 2048 x 1536, Medium1: 1600 x 1200,
Medium2: 1024 x 768, Small: 640 x 480 pixels
Movie: 640 x 480, 320 x 240 or 160 x 120 |
| Number of Recordable Images |
| |
Small (S) |
Medium 2 |
Medium 1 |
| |
N |
F |
SF |
N |
F |
SF |
N |
F |
SF |
| File Size |
84KB |
150KB |
249KB |
170KB |
320KB |
570KB |
278KB |
558KB |
1002KB |
| SDC-16MB |
127 |
80 |
52 |
74 |
42 |
23 |
46 |
24 |
13 |
| SDC-128MB |
1118 |
711 |
460 |
652 |
372 |
211 |
411 |
217 |
121 |
| SDC-512MB |
4316 |
2746 |
1777 |
2517 |
1438 |
816 |
1590 |
838 |
471 |
| |
Large |
Movie |
| |
N |
F |
SF |
Low |
Medium |
High |
Compact |
Full
Motion |
|
| File Size |
445KB |
893KB |
1602KB |
330KB |
660KB |
1980KB |
120KB |
1320KB |
|
| SDC-16MB |
30 |
15 |
8 |
40 sec. |
20 sec. |
6 sec. |
98 sec. |
10 sec. |
|
| SDC-128MB |
269 |
136 |
74 |
355
sec. |
181
sec. |
64 sec. |
869
sec. |
92 sec. |
|
| SDC-512MB |
1041 |
529 |
295 |
1,373
sec. |
702
sec. |
249
sec. |
3,357
sec. |
359 sec. |
|
Note: N=Normal F=Fine SF=SuperFine Storage capacity
varies depending on the scene or the subjects. This data is estimated from Canon's
standard shooting conditions. Figures for Movie Mode represent total capacity of SD Memory
Card. Individual clips are limited to 3 minutes. |
| Playback Specifications |
| Playback Modes File |
Single, Index (9 thumbnail images) |
| Erasing Specifications |
| Erase Modes |
Still images: Single Image, All Images Movie: Part of Movie, All Movie |
| Interfaces |
| Computer Interface |
USB (mini-B PTP), Audio/Video Output (NTSC or PAL selectable) |
| Video Out |
NTSC or PAL |
| Other |
SD memory card slot. Direct connection to Canon CP Printers and BJ Photo
Printers (no computer required), using camera's USB cable. |
| Power Supply |
| Power Source |
1. Rechargeable Lithium-ion battery (NB-4L)
2. AC Adapter Kit (ACK-DC10) sold separately |
| Shooting Capacity |
NB-4L: LCD On - Approx. 140; LCD Off - Approx. 400 |
| Playback Time |
Approx. 180 min. |
| Physical Specifications |
| Operating Temperature |
32-104° F/0-40° C |
| Operating Humidity |
10-90% |
| Dimensions (W x H x D) |
3.38 x 2.10 x 0.83 in. / 85.8 x 53.4 x 21.1mm |
| Weight |
Approx. 4.06 oz./115g (camera body only) |
|
Note: 21 languages provided (English, German, French, Dutch, Danish,
Finnish, Italian, Norwegian, Swedish, Spanish, Simplified/Traditional Chinese, Japanese,
Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian and Turkish) |
