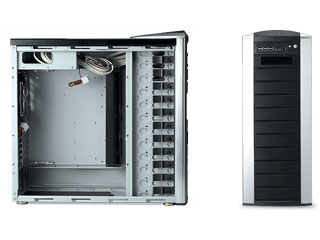

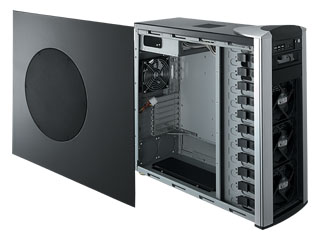

CM Stacker (STC-T01)

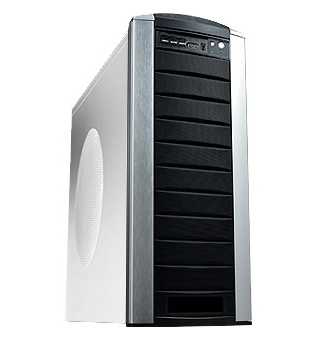

cmstacker_silver.jpg (7762 bytes) CM Stacker is a new computer chassis from Cooler Master with extremely powerful functions. The innovative design supports Extend ATX, BTX and dual power supply, making for easy upgrading. Besides its unique cross-flow fan, the CM Stacker supports up to eight regular fans, giving it unmatched cooling performance. Built from 1.0 mm thick steel plate, the CM Stacker is immensely strong, with a high-quality anti-vibration stand providing extra protection for the system. Designed for maximum extensibility and allowing the user the utmost flexibility in the utilization of space, the CM Stacker makes upgrading incredibly easy, and can be configured to meet your own personal needs with minimum hassle.
Features:
  • Supports up to 11 5.25” drives
  • Moveable front control panel with 6 USB 2.0 connections
  • Maximum upgradeability;
    supports E-ATX and the upcoming BTX
  • Dual power positioning design
Structural:
  • Aluminum alloy motherboard tray frame
  • Strengthened with 1.00mm steel plates
  • Superior mechanical design for greater stability

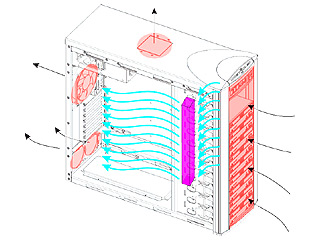

Cooling:
  • CM Stacker supports up to 8 fans
  • Front – Full mesh screen provides superior air flow; support up to three 12 cm fans
  • Top - Ultra silent 8cm Fan * 1 (exhaust)
  • Side – Mesh screen on side panels provides the maximum air
Ventilation:
  • Rear – Ultra Silent 12cm Fan * 1 + 8 cm Fan * 2 (intake)
  • Motherboard – 300mm cross flow fan; provides superior air flow for key PC components (CPU, VGA etc.)
  • Assembly
  • Tool-free installation; Supports the use of screws for permanent installation
  • Maximum flexibility in space utilization for self-assembly
Dimension: 584 mm x 227 mm x 536 mm (D x W x H)
Material: Aluminum Bezel , SECC Chassis
M/B Type: EXTEND ATX (12" x 13") ; BTX
Power Supply Form Factor: Standard ATX PS2
5.25" Bays: 7 (Exposed)
3.5" Bays: 1 (Exposed), 3 (Hidden)
Ventilation: One 120 x 120 x 25 mm Front Fan (intake)
One 120 x 120 x 25 mm Rear Fan (exhaust)
One 80 x 80 x 25 mm Top Fan (intake)
Additional: USB 2.0 x 6
IEEE 1394 (FireWire) x 1
Earphone jack x 1
MIC x 1
