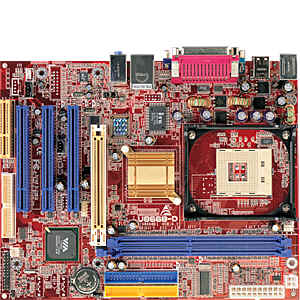

U8668-D (Socket-478) Intel P4

PROCESSOR:
  • Intel Pentium 4 / Celeron processor
    Support Intel Hyper-Threading Technology
  • 533MHz / 400MHz system interface speed
CHIPSET:
  • VIA P4M266A / VT8235

MEMORY:
  • 2 x 184-pin DDR SDRAM DIMM
  • PC2100 DDR SDRAM
  • Maximum 2GB
EXPANSION SLOT:
  • 3 x PCI
  • 1 x AGP
  • 1 x CNR
IDE:
  • 4 x EIDE devices
  • Support Ultra DMA 66/100/133 Bus Master Mode
I/O:
  • 1 x PS/2 mouse, 1 x PS/2 keyboard
  • 4 x Rear USB 2.0 ,1 x Front USB 2.0 Header(For 2 USB 2.0 Ports)
  • 1 x VGA
  • 1 x RJ45 port
  • 1 x Parallel ,1 x Serial
  • 1 x Lin-out/Lin-in/Mic
  • 1 x IrDA
  • 1 x Front Audio
  • 1 x CD in
  • 1 x S/PDIF Out Connector
  • 1 x Floppy
  • 1 x Chassis Intrusion Connetcor
  • 1 x WOL Connector
INTEGRATED VIDEO:
  • S3 ProSavage 8 up to 32MB shared video memory
INTEGRATED AUDIO:
  • C-Media CMI9739A 6-channel audio CODEC
INTEGRATED LAN:
  • VIA VT6103
HARDWARE MONITOR:
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage
  • Vcore,+3.3V,+5V,+12V
FORM FACTOR:
  • Micro ATX form factor
  • Dimension: 22.5cm x 19.0cm ( W x L )
