Mini Studio Barebone PC - iDEQ-210V
The Biostar iDEQ is a versatile small form factor system designed to meet your computing and entertaining needs. Are you looking for a portable yet powerful LAN party gaming machine?
Or perhaps you want a control center for your home entertainment system? There are countless
uses for the iDEQ system - they are only limited by your imagination.
fsb400.jpg (7504 bytes)ata133.jpg (6769 bytes) raid.jpg (7834 bytes)sata.jpg (7651 bytes)usb2.jpg (7944 bytes)1394.jpg (3560 bytes)agp8x.jpg (9026 bytes)ddr.jpg (8906 bytes)6ch.jpg (8936 bytes)spdif.jpg (9399 bytes)
Processor: AMD Athlon XP, Sempron, Athlon, and Duron processors
400MHz Front Side Bus
Chipset: VIA KM400A + VT8237
Memory: 2 x DDR400 slots
Expansion Slots: 1 x AGP (8x)
1 x PCI
IO Ports:

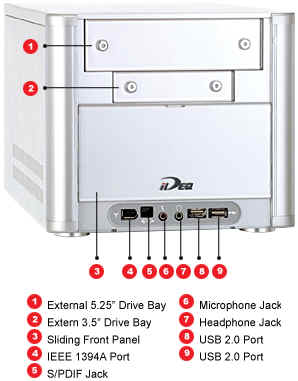

- Front -
2 x USB 2.0
1 x S/PDIF input
1 x Microphone
1 x Headphone
1 x IEEE 1394A		 - Rear -

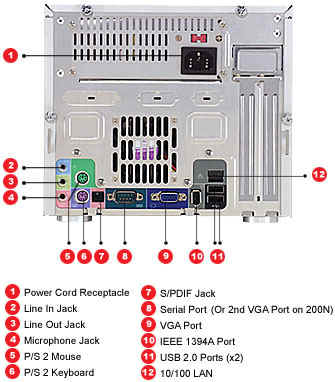

2 x USB 2.0
1 x S/PDIF output
1 x IEEE 1394A
1 x LAN
1 x VGA
1 x Serial
2 x PS/2
1 x Line-in
1 x Line-out
1 x Mic
IDE: Two IDE channels
Physically accommodates up to 2 EIDE devices
Ultra DMA 33/66/100/133 Bus Master Mode
Serial ATA: 2 x SATA devices
VT8237 SATA RAID
Video: VIA UniChrome 2D/3D Graphics with motion compensation
Audio: C-Media CMI9761A
LAN: 10/100mbps LAN
Size: 210mm x 323mm x 187mm (W x D x H)
PSU: True 200W
