Mini Studio Barebone PC - iDEQ-210M-BK

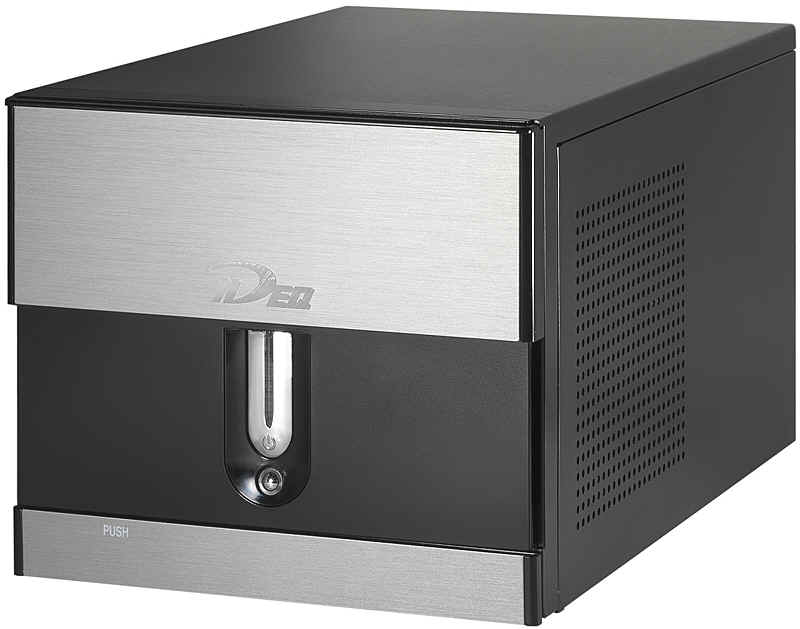

The Biostar iDEQ is a versatile small form factor system designed to meet your computing and entertaining needs. Are you looking for a portable yet powerful LAN party gaming machine? Or perhaps you want a control center for your home entertainment system? There are countless uses for the iDEQ system - it is only limited by your imagination. ideq_210m.jpg (259703 bytes)
Processor: Intel Pentium 4, Prescott, Celeron, and Celeron-D processors
800MHz Front Side Bus
Intel Hyper-Threading technology
Chipset: VIA PM800 + VT8237
Memory: Two DDR400 slots
Up to 2GB in total system memory
Expansion Slots: 1 x AGP (8x)
1 x PCI
IO Ports:
- Front -
2 x USB 2.0
1 x S/PDIF input
1 x Microphone
1 x Headphone
1 x IEEE 1394A		 - Rear -
2 x USB 2.0
1 x S/PDIF output
1 x IEEE 1394A
1 x LAN
1 x VGA
1 x Serial
2 x PS/2
1 x Line-in
1 x Line-out
1 x Mic
IDE: Two IDE channels
Physically accommodates up to 2 EIDE devices
Ultra DMA 33/66/100 Bus Master Mode
Serial ATA: 2 x SATA devices
VT8237 SATA RAID
Video: VIA UniChrome 2D/3D Graphics with motion compensation
Audio: C-Media CMI9761A 6-Channel AC'97 CODEC
1394A: VIA VT6307
LAN: VT6103 10/100mbps LAN
Size: 210mm x 323mm x 187mm (W x D x H)
PSU: True 200W
